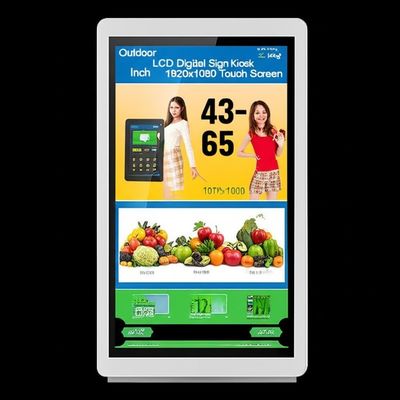

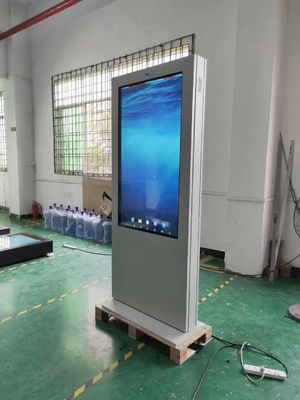

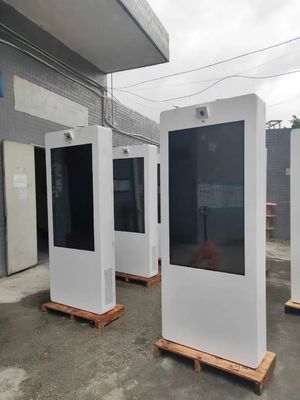

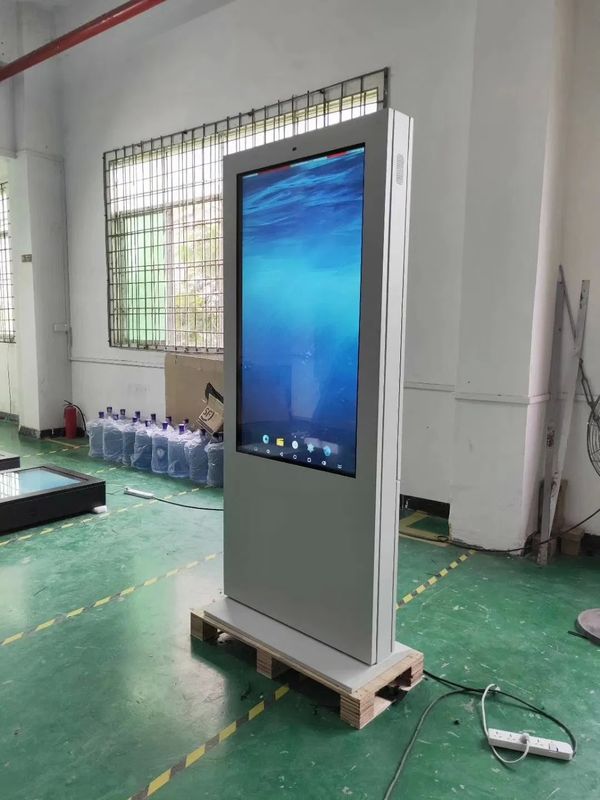

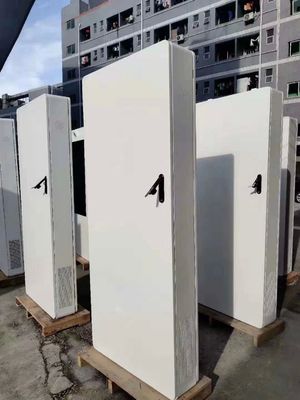

Outdoor LCD Digital Signage Kiosk 43-65 Inch 1920x1080 Touch Screen

Outdoor LCD Digital Signage Kiosk 43-65 Inch 1920x1080 Touch Screen

  • Outdoor LCD Digital Signage Kiosk 43-65 Inch 1920x1080 Touch Screen
  • Outdoor LCD Digital Signage Kiosk 43-65 Inch 1920x1080 Touch Screen
  • Outdoor LCD Digital Signage Kiosk 43-65 Inch 1920x1080 Touch Screen
  • Outdoor LCD Digital Signage Kiosk 43-65 Inch 1920x1080 Touch Screen
Outdoor LCD Digital Signage Kiosk 43-65 Inch 1920x1080 Touch Screen
Detalhes do produto:
Condições de Pagamento e Envio:
Minimum Order Quantity: 1
Contato
Descrição de produto detalhada
Screen Type: Infrared Resolution: 1920*1080
Brightness: 400CD/M*2 Response Time: 6.5ms
Contrast: 4000:1 View Angle: 178°/178°(H/V)
System RAM: DDR 128MB System ROM: NAND FLASH 4G
Decoding Resolution: MAX. 1080P USB Ports: 1 x USB Host, 1 x USB OTG
Power Input: DC 12V/5A Power Consumption: Not more than 5W
Shell Material: Cold rolled steel with Aluminium edge Glass Type: Toughened glass surface
Operating Temperature: +5°C ~ +50°C
Destacar:

Outdoor LCD digital signage kiosk

,

65 inch touch screen kiosk

,

1920x1080 resolution digital signage

Outdoor LCD Display Touch Screen Kiosk for Digital Signage
USB Version Advertising Player
Update advertisement by USB (A20) with the following specifications:
CPU HD video and audio decoder chip
System RAM DDR 128MB
System ROM NAND FLASH 4G
Storage SD/USB
Decoding resolution MAX. 1080P
O/S UCOS
USB 2.0 Port 1 x USB Host, 1 x USB OTG
Serial Port 1 x Serial Port
I2C Interface 1 x I2C Interface
LVDS Interface 1 x can directly drive 15 ~ 100 inch LCD screen, 50/60Hz
Audio Out 1 x Stereo Audio Out (2 x 10W/8Ω speaker can drive directly)
Etc. RTC real time clock, Timer switch, System upgrade via USB
PWR Input DC 12V/5A (Power On/Off)
PWR Consumption Not more than 5W (Without speaker,LCD,backlight Inverter,USB device)
Shell material Cold rolled steel with Aluminium edge
Glass Toughened glass surface
Painting Powder coating
Color Black/silver/white etc.
Network Version Advertising Player
Update advertisement through internet, OS: Android 4.4.1 (A20)
Main Hardware
Board configuration CPU dual core ARM Cortex A9 1.5 GHz(max1.6GHz), Motherboard M158, GPU quad coreARM Mali-400 MP, HYNIX/SAMSUNG DDR3 1Gbyte, HYNIX/SAMSUNG NAND FLASH 8GB (Scalable TF/USB)
Decoding resolution Perfect support 1080P Full HD
Main Function
OS Android 4.2.2
Programming Perfect support for video / picture / caption / logo / Date Time Day / weather, etc. regional free split-screen combinations; support background images
Play Mode Receiving media content over the network, stored in the local loop after, commercials, broadcast regularly, gaskets playback; By U-import; U disk playback.
Intelligent Management B / S architecture, GTV digital signage release management system: a custom template; timed release program, the program cycle play, schedule broadcast emergency announcements, gaskets and other players scheduled to play, MD5 two-way encryption, multi-level approval; terminal group management, real-time monitoring, remote control, timer switch, time to download, flow control; access control; logging and statistics functions
Multimedia Support
Media Format Supports MPEG1, MPEG2, MPEG4, H.264, WMV, MKV, TS, flv and other mainstream video formats; supports MP3 and other audio formats; Support JPG, JPEG, BMP, PNG, GIF and other image formats
Basic Interface
Power Interface X1
Video input interface VGA×1, HDMI×1
Video output interface X 1,can directly drive 50 / 60Hz LCD, LVDS 30 core 2.0mm double needle
Audio input interface X 1, linear input, 3.5MM headphone jack
Audio output interface X 2,CLASS-D stereo amplifier output can directly drive 2 x 10W / 8Ω speakers, 2 core 2.0mm jack
Ethernet Interface X 1,10 / 100M Ethernet
WiFi interface X 1,WIFI(150Mbps)
3G module interface PCIE slot (supporting a phone deck) x 1
USB interface X 1
USB2.0 interface USB OTG x 1, USB HOST x 1
Backlight interface X 1, 6 core 2.0mm jack
Fan connector X 2 , 2 core 2.0mm jack
Infrared interface X 1, 5 core 2.0mm jack, including red and green LED
Speaker Output Left channel x 1; right channel x 1
Camera Input X 1 , 30 core 2.0mm double needle
Function expansion port Serial × 1, SPI port × 1, Camera input × 1, USB touch screen interface × 1
Serial ports X 1,7 white core 2.0mm jack
SD card holder X1
Additional Features
RTC Real-Time Clock Time synchronization
Watchdog reset Using an internal watchdog, abnormal automatic recovery
External IR input NEC format support dedicated remote control
Electrical Specifications
Power Input Switching power supply (STB, 5VSB, 5V, 12V), 10 core 2.00mm
Outdoor LCD Digital Signage Kiosk 43-65 Inch 1920x1080 Touch Screen 0 Outdoor LCD Digital Signage Kiosk 43-65 Inch 1920x1080 Touch Screen 1
PC Version Kiosk (Touch Screen Optional)
Function is the same as computer (Windows), can make self-service terminal kiosk with all kinds of extension function.
Touch Screen Technology
Standard touch screen Infrared multi touch screen
Other touch screen Capacitive, Resistance, Surface etc.
Standard touch points 2 points / 4 points / 6 points
Other touch points Up to 32 points multi touch
Standard PC Specification (Mini PC)
CPU Intel G3260/3.2GHZ/Dual core
Main board H81/B75
RAM DDR3,2GB
HDD S-ATAII 500GB/16MB/5400rpm
Graphics Intel HD Graphics
Ports 4 x USB, 1 x VGA, 1 x LAN, 1 x AUDIO-OUT , 1 x MIC-IN,DVI,HDMI
Operating system Windows7,windows8,windows XP,Linux,Apple etc.
High PC Specification (Optional) (Mini PC)
CPU Intel I3/4150/dual core,3.5GHZ
Intel I5 4590/quad core3.4GHZ
Intel I7-4790/quad core,3.6GHZ
Main board Asus P8 H81M-D
Ram 4GB/8GB/16GB
HDD 1TB
SSD 32GB/64GB/128GB/500GB
Graphic card HD5450,1GB; 2GB
Physical Specification
Kiosk shell material 1.5mm cold rolled steel+Acrylic cover/Tempered glass
Color Silver /Black/White/customized pantone colors.
Wall mounted support With wall mounted Support
Audio Speakers | 2 x 10W Speakers, 1 x 30W Amplifier
Ports Slots | Power input | Power switch | PC switch | USB | LAN | WIFI
Cables Standard power cable
Power Supply International 110-240 AC power
Operating Temp | Humidity Temperature:+5°C ~ +50°C | Humidity:0% ~ 80%
Packing Method Export wooden box+export carton box+4cm foamy.
Android Version Kiosk (Touch Screen Optional)
Can make self-service terminal kiosk with all kinds of extension function.
Main board A83 Eight Core/RK3188/RK3288
System Ram DDR3-2GB
System Rom NAND FLASH 8GB
I/O Connectors 2 x USB host,1 x RJ45,VGA x 1 HDMI x 1,AV x 1
Decoding resolution MAX 1080P
wired network built-in Realtek RTL8103EL
Audio built-in HD audio 8(Realtek ALC888) audio system
Video format MPEG1,MPEG2,MPEG4,H.264,WMV,MKV,TS,flv
Audio format MP3
Photo format JPG,JPEG,BMP,PNG,GIF
OS Android 4.4.4
OSD Language Chinese, English, Spanish, Russian, German, French, Arabic, etc.
Network 3G,Ethernet,Wifi,and other wireless device extended
Touch screen infrared multi touch 2 / 4 / 6 points touch
Environment Operating Temperature :0°C to 40°C
Storage Temperature :-20°C to 60°C
Humidity:20%-80% RH at 40°C
System Power Supply AC 110V~240V,50/60HZ
Power cord Yes
TFT panel grade Imported new panel
Case Cold rolled steel with powder coating+ transparent glass surface
Package Inner 4CM PE foam,Middle export carton box,Outer export wooden box
Magic Mirror Advertising Player
CPU RYX59HD/A20
IO connectors 1 x USB host,1 x USB OTG,1 x SD card slot,1 x I2C Interface,1 x LVDS output; 1 x AV,1 x VGA,1 x HDMI input
Storage USB/SD card
Decoding resolution MAX 1080P
Audio built-in HD audio 8(Realtek ALC888) audio system
Video format MPG,MPG-1, MPG-2, MPG-4,AVI,MP4, DIV, TS, TRP, WMV, M2TS, MKV, RM, RMVB
Audio format MP3,WMA
Photo format JPEG,BMP,PNG
OS UCOS
OSD Language Chinese, English
Play Mode Supports loop playback ,USB auto copy and ad playlist mode
Environment Operating Temperature :0°C to 40°C
Storage Temperature :-20°C to 60°C
Humidity:20%-80% RH at 40°C
System Power Supply AC 110V~240V,50/60HZ
Power cord Yes
TFT panel grade Imported new panel
Case Cold rolled steel with powder coating+ mirror glass surface
Available Versions
  • USB version ad player: update advertisement by USB (Single Version)
  • Network version advertising player: update advertisement through internet, support both Android OS and UCOS OS (Network Version)
  • PC version kiosk(touch screen optional): its function is the same as computer, support OS of Android,Windows7,windows8,windows XP,Linux,Apple etc. (Built-in PC Version,touch screen optional)
  • Android OS4.4.4 kiosk(touch screen optional): kiosks using Android OS system.
Lead Time
  • For hot sale models, we usually have 2-10 units in stock, and they could be delivered after payment been received
  • For our standard products, 15 to 25 working days, depends on the quantity
  • For developing customized products, 25-30 days (depends on complexity of customers' requirements and quantity)
Key Features
Single Version (USB version ad player)
Network Version
  • Full HD display with 1920*1080 high resolution, new imported SAMSUNG,LG or AUO branded LCD screen, support 16:9 or 9:16 (horizontal / vertical ) display
  • Support setting multiple sessions to automatically turn on and off with IR remote controller
  • Support any split-screen, multi-window display, support to play different content in different windows
  • Support multimedia file playback formats MPEG1/2/4, MP4, AVI, RM, RMVB, WMV, VOB, JPEG, MPG, BMP, TXT and other formats
  • Support videos, pictures, scrolling text and many other combinations of multi media playing mode
  • Support playing lists controlling, playing order setting, support to play automatically and circularly
  • Free intelligent programming system, easy to use
  • Support USB directly play, support copy between two USB
Android Version Touch Screen Series
  • Using Allwinner A20 multimedia HD network multimedia decoder chip, the system platform is based on Android 4.0 or above
  • Can replace entertainment functions of the desktop PC, platform with standardized, open advantages
  • Platforms and configurations: Hardware platform: ARM Cortex-A8 1.5 GHZ processor; software platform: Based on the Android operating system; memory: DDR3: 1G build in; Flash ROM: 4GB NAND
  • Support a number of different templates scenes, multiple task packages looping
  • Support HD resolution 1920*1080,1080P HD video and photo playback; built-in HDMI 1.3 support 1080P and 3D output
  • Full HD video format playback, compatible with a variety of playback formats
  • Support Web/Flash player, with Web/ Flash Touch interactive functions
  • Powerful input functions: Support multi-touch, optical, acoustic, resistors, capacitors and infrared touch screen
  • Powerful output function: Support two display modes while boot up-vertical and horizontal screen
  • More storage media support: Support SD card, SATA hard driver
  • Multi-language: Support Chinese, English and other languages for most of countries
  • Timer setting: help save power and prolong its service life
  • Rolling text: the rolling text will be showed at the bottom of the screen while playing video advertisement
  • Clock display: build-in clock IC,can automatically update the time information after connect the network
  • Weather: can automatically update the weather after connect internet
  • Split-screen play: Support 1080P video, Pictures, subtitles, time, weather, Web/Flash etc. free split screen function
  • Support remote reboot, remote shutdown, remote screenshots, remotely delete material
  • Support powerful network: network/Wifi /3G
  • B/S architecture, a strong background server management software Support
  • Powerful Cloud network platform for remote management
PC Version Touch Screen Series
  • Kiosk built-in computer
  • Can choose different hardware allocation levels
  • All function same as computer
  • Support internet, Lan, WIFI, 3G, Blue tooth etc.
  • Optional: Multi touch function, printer, webcam, bar code scanner, IC/ID card reader, bank card reader, bill acceptor etc.
Video Wall
  • Panel: from 42 to 55inch or above LG/SAMSUNG/AUO industrial panel
  • Branded LG/SAMSUNG/AUO industrial panel, supports 24 hours continuously playing
  • Full hardware structure, no CPU and operating system
  • Easy installation, only fix them together by metal bracket
  • Easy to operating, can operate system together with software flexible, we offer free software
  • Supports RS-232 serial ports remote control
  • Supports multiple signal input: BNC, YPbPr, VGA, HDMI, DVI and RS232
  • Images are displayed smoothly and naturally without time delay and tailing and image quality is quite smooth
  • Supports 10 x 10 pieces panels splice
  • Easy maintenance, if one unit is going bad, only replace it with a new one
  • Wireless control: common solution
  • Supports setup screen timer and memory function after cutting off power
  • Scene management: users can save and preset the scene that want to display
Outdoor LCD Digital Signage Kiosk 43-65 Inch 1920x1080 Touch Screen 2 Outdoor LCD Digital Signage Kiosk 43-65 Inch 1920x1080 Touch Screen 3 Outdoor LCD Digital Signage Kiosk 43-65 Inch 1920x1080 Touch Screen 4 Outdoor LCD Digital Signage Kiosk 43-65 Inch 1920x1080 Touch Screen 5 Outdoor LCD Digital Signage Kiosk 43-65 Inch 1920x1080 Touch Screen 6 Outdoor LCD Digital Signage Kiosk 43-65 Inch 1920x1080 Touch Screen 7 Outdoor LCD Digital Signage Kiosk 43-65 Inch 1920x1080 Touch Screen 8 Outdoor LCD Digital Signage Kiosk 43-65 Inch 1920x1080 Touch Screen 9 Outdoor LCD Digital Signage Kiosk 43-65 Inch 1920x1080 Touch Screen 10 Outdoor LCD Digital Signage Kiosk 43-65 Inch 1920x1080 Touch Screen 11
Shenzhen TOPADKIOSK is highly specialized in the field of LCD Digital Signage products, LCD DISPLAY, QLED display, OLED display. We have developed our own LCD products Series, such as digital signage, all In One PC, touch screen, lcd video wall, outdoor IP67 High Brightness LCD Digital Signage, etc, the size is available with 7" Inch to 98 Inch etc. These products have been widely used in the USA, Europe, Southeast Asia, the Middle East, Africa and other countries and regions. These products are suitable for advertising in lots of areas, such as buildings, shops, hotels, supermarkets, railway stations, bus stations, airports, taxis, buses and other outdoor areas.
Quality and Service is Our Symbol.The most important factor for us to win our customers' hearts and found the long-term business relationships with our customers is quality and service. With these years' research, development and manufacture, we have accumulated our special experience and methods to control the quality through the whole process of designing, material purchasing, manufacturing and marketing. Especially for the material quality, we have founded firm relationships with our suppliers and even invested in some supply companies to directly control quality.
We offer 7*24 hours service to all our clients. Our sales person and after-selfteam will keep on line to answer and solve all questions for you. Providing services beyond our customers' expectations is our purpose. Our excellent pre-sales services and after-sales services have earned us

etiqueta:

Signage de Digitas da exposição,

exposição digital do quiosque,

quiosque de informação digital

Contacto
Shenzhen TopAdkiosk Display Technology Co., Ltd.

Pessoa de Contato: Jason Cai

Telefone: 8613509622595

Fax: 86-755-99889977

Envie sua pergunta diretamente para nós (0 / 3000)

Outros Produtos
55" quiosque tomado partido dobro do Signage do ósmio Digital do cubo Android7.1 com luz do diodo emissor de luz
55" quiosque tomado partido dobro do Signage do ósmio Digital do cubo Android7.1 com luz do diodo emissor de luz

Tamanho: 32-55”

Nome do artigo: 55" quiosque dobro do ósmio do androide do tela táctil do cubo dos lados com luz do diodo emissor de

lugar: Correio INTERNO da loja, entrada

Ósmio: Ósmio de ANDROID 7,1 OU de WINDOWS 10
Projeto personalizado do cubo de Win10 Linux 55inch Digitas quiosque interativo
Projeto personalizado do cubo de Win10 Linux 55inch Digitas quiosque interativo

Tamanho: 55inch

Nome do artigo: Construção dupla personalizada do tela táctil dos lados do projeto do cubo no quiosque do PC

Uso: Correio INTERNO da loja, entrada, sala de exposições, exposição

Ósmio: Ósmio de ANDROID 10.1os OU de WINDOWS 12
Windows 10 os Android 10.1 Digital Signage Kiosk Fast Wireless Charger
Windows 10 os Android 10.1 Digital Signage Kiosk Fast Wireless Charger

Ângulo de visão: 178/178

Pontos do toque: toque 10-points

Sistema operacional: Ósmio de Windows 10, Android 10,1

Cor: Branco, preto, de prata ou personalizado
tipo elétrico de carregamento do quiosque do telefone celular 22inch de 1920*1080 células
tipo elétrico de carregamento do quiosque do telefone celular 22inch de 1920*1080 células

Ângulo de visão: 178/178

Pontos do toque: PCAP 10 pontos do toque

Sistema operacional: Ósmio 10,1 de Android

Cor: Branco, preto, de prata, a outra cor
Quiosque de sinalização digital 22 polegadas 5MS Máquina de venda automática de carregamento de celular
Quiosque de sinalização digital 22 polegadas 5MS Máquina de venda automática de carregamento de celular

Ângulo de visão: 178/178

Pontos do toque: toque 10-points

Sistema operacional: Win7/8/10, Android

Cor: Branco, preto, de prata
69.3 Inch Indoor Digital Signage Kiosk with 1920x1080 Resolution
69.3 Inch Indoor Digital Signage Kiosk with 1920x1080 Resolution

Screen Size: 69.3inch

Resolution: 1920*1080

Brightness: 400CD/M²

Response Time: 6.5ms
43-65 Inch Infrared Touch Digital Signage Kiosk with 1920x1080 Resolution
43-65 Inch Infrared Touch Digital Signage Kiosk with 1920x1080 Resolution

Screen Size: 43/49/55/65 inch

Resolution: 1920x1080

Brightness: 400-500 cd/m²

Response Time: 6.5ms
Signage digital do multi toque

A anti propaganda de Digitas do toque do preto 4G do roubo multi seleciona a exposição interativa do Signage

Suporte Android 5,1 do assoalho do quiosque do Signage de Digitas do toque do quadro do estilo de Iphone multi

Luminoso infravermelho 360 Cd/㎡ Dustproof do Signage de Digitas do toque de Android 10 multi

Signage exterior do LCD Digital

Suporte exterior completo do assoalho do Signage de IP65 HD LCD Digital lêndeas de 55 polegadas 1500 - 5000 lêndeas

Painéis LCD portáteis da propaganda exterior da definição alta uma posição livre de 43 polegadas

2000 quiosque exteriores horizontais do écran sensível do Signage das lêndeas IP65 LCD Digital 55 polegadas para o hospital

Signage fixado na parede de Digitas

Monitor capacitivo completo do tela táctil da montagem da parede de HD 32" com listras do diodo emissor de luz

Tela táctil fixado na parede Android 1920 x do Signage de 32 Digitas da borda branca da polegada definição 1080

Exposição interna da propaganda do LCD do Signage fixado na parede branco de Digitas do Super Slim

Pedir um orçamento

E-Mail | Sitemap

Site para celular
Política de Privacidade | China bom qualidade Signage digital do multi toque fornecedor. © 2018 - 2025 Shenzhen TopAdkiosk Display Technology Co., Ltd.. All Rights Reserved.
